GY320

Share to：

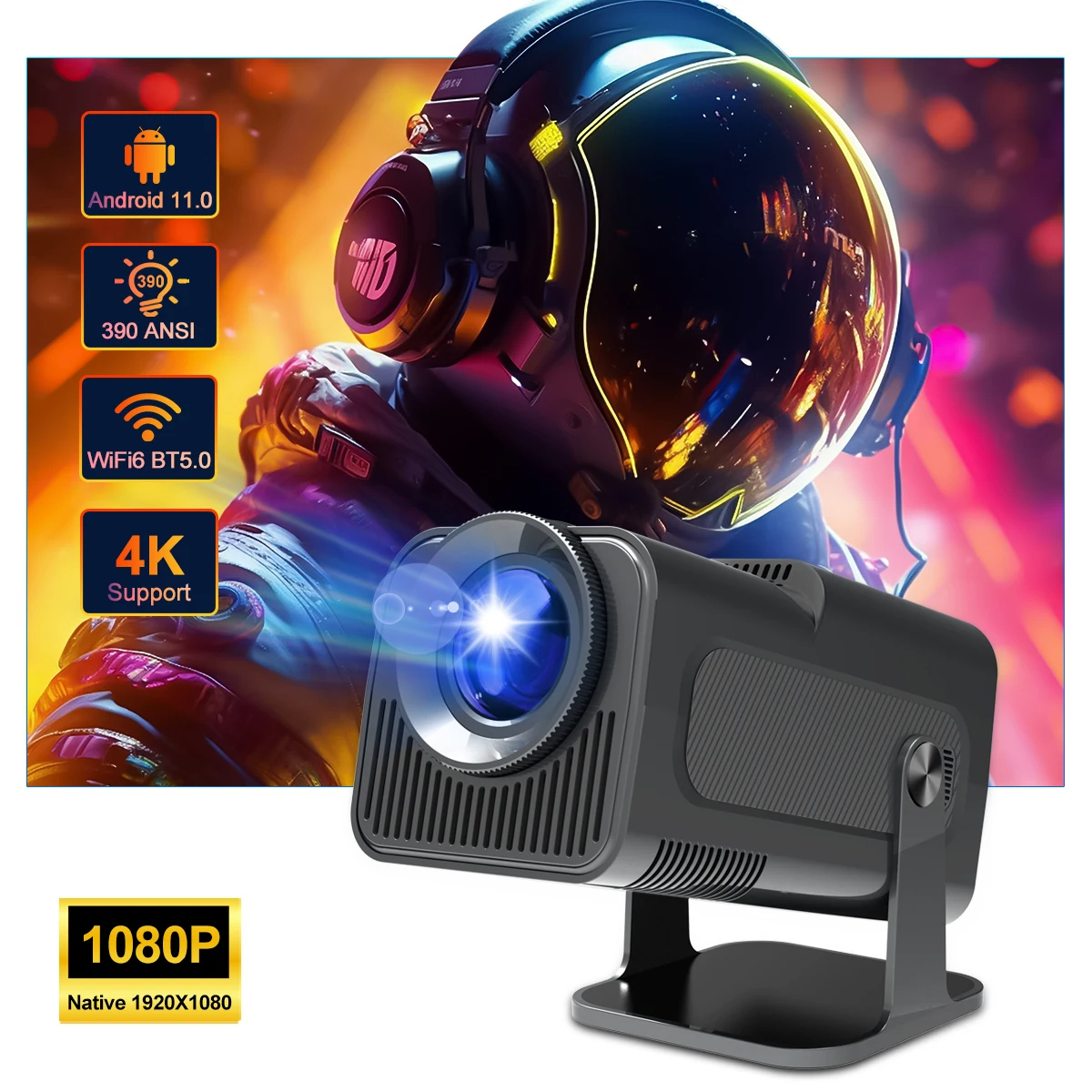

LCD smart projector

Technical parameter

Product parameter	Fuselage color	Black (other colors can be selected)
Product parameter	Body size (L × W × H)	220X104X101MM
Optical parameter	Physical resolution	1080P (1920X1080)
	Temperature	8000K（±10%）

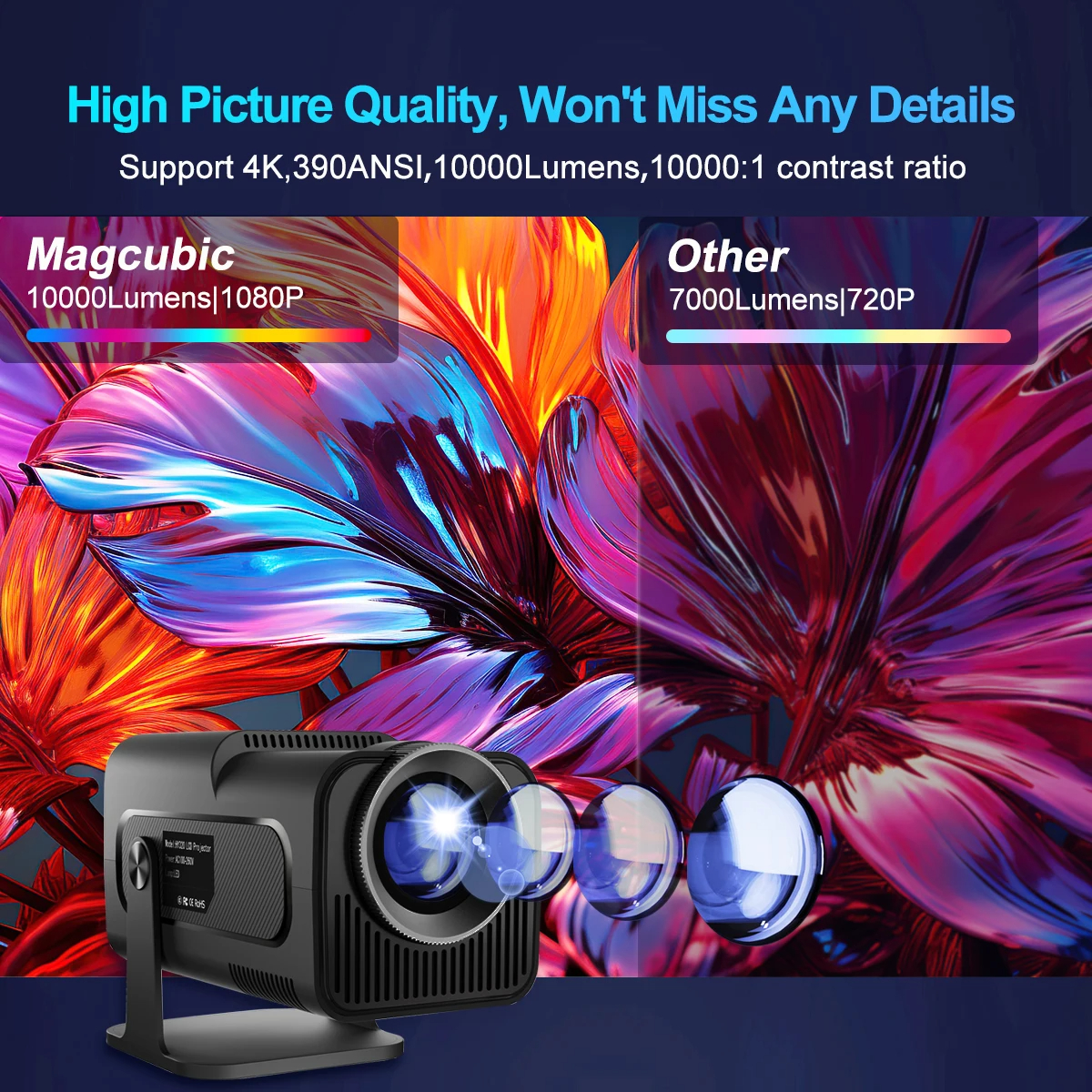

	luminance	390 Ansi LM
	Contrast	2000
	Evenness	80%
	Projected aspect ratio	16:9
	Projective ratio	1.1:1
	Trapezoidal alignment	Automatic ladder
	Language	multilingual
	Lamp life	More than 50,000 hours
	Lamp type	White LED module
	Focusing mode	Manual focusing
	Control mode	Button/Remote control
	Projection distance	1 m -4 m
	Projected size	30-150 inches
System parameter	Same screen image	Airplay/MiraCast
	System	Android 11
	CPU	Allwinner H713
	CPU	Quadrinucleus ARM Cortex-A53
	GPU	Mali-G31 supports OpenGL ES3.2,Vulkan 1.1,and OpenCL2.0
	Running memory	1GB
	Built-in storage	8GB
	WIFI	AW869A -- Dual band WiFi6 + BT5.0 Module
	Bluetooth	Bluetooth 5.0
Basic parameter	Video format	Full-format decoding including HEVC/VP9/AVS2/AVC 4K@30fps and MPEG1/MPEG2/AV1 1080p/60fps decoding and so on
	Music format	MP3/WMA/ACC
	Picture format	JPG,BMP,PNG,support image scaling
	Key control	Power button
	Remote control	Infrared remote control
	Built-in speaker	1X3W
	Bluetooth speaker	support
	Optical machine power consumption	50W
	Overall power consumption	60W
	Operating voltage	AC90-260V/50-60HZ
	port	USB X1、HDMI In X1、耳机 X1、ACX1
	Pilot lamp	LED（Power red, power green）
	Projection mode	Forward throw, back throw
	Standby power consumption	2.5W
Packaging parameter	Packing details	Color box, remote control, power cord, manual
