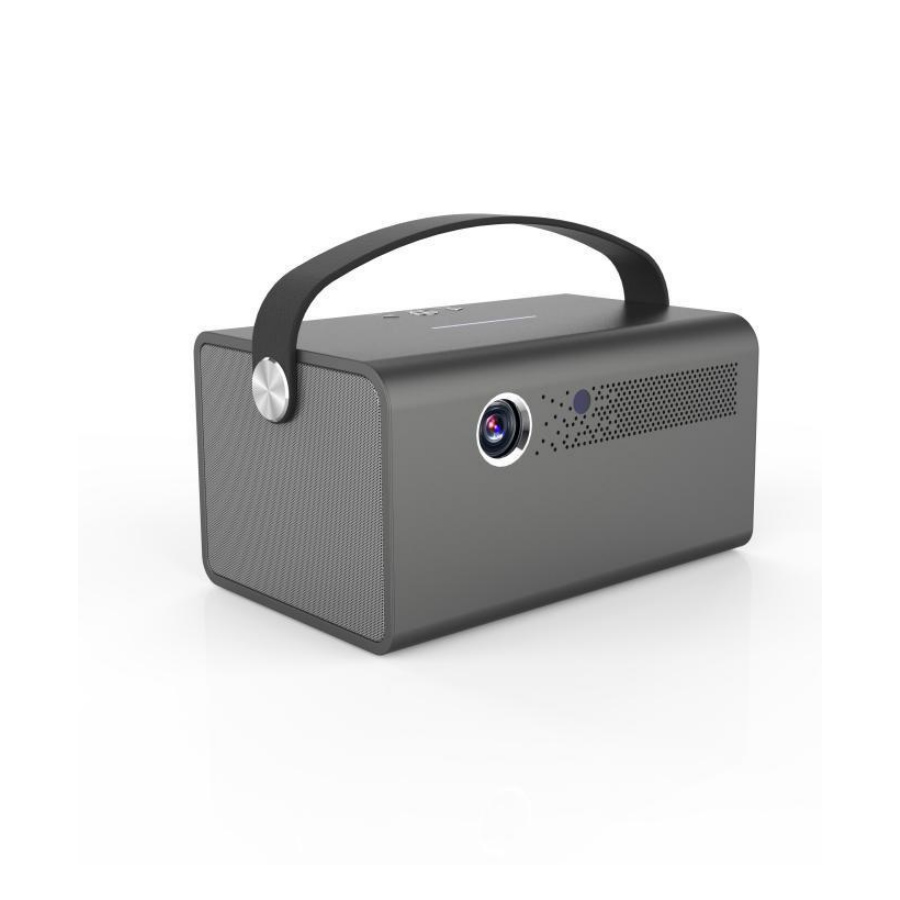

GV7

Projector technology

Texas Instruments Ti DLP technology

Display chip

Ti 0.45 inch WXGA DMD(100% optical machine with Off-axis)

Light source type

Germany OSram RGB-LED lights

Projected brightness

600ANSI (International Standard)

Physical resolution

1280*800P

Picture quality uniformity

> 90%

Contrast FOFO

1000:1

3D technology

Support 3D function DLP-LINK shutter 3D glasses

Projective ratio

1.2:1.

Projection frame

39 "@ 1 meter

Projection size calculation method

Projection ratio (1.2) * Projection size (100 inches) *16:9 screen length (0.0254*0.8716)

Screen width ratio

16:9/16:10/ 4:3

Trapezoidal correction

Automatic up and down ladder correction ±40°, support manual side casting function

Projection mode

Support forward, back and drop

Focusing mode

Electric motor focus

Built-in speaker

5W*2 (Heavy bass surround sound)

CPU

MTK Decode 4K H265/AVS2 4K*2K/30HZ

Dominant frequency

64-bit CPU: Contex A53 4-core GPU: Mali-G31

cache

2GB DDR3

Internal memory

32GB eMMC

Operating system

Android 9.0

Bluetooth

BT5.0(external Bluetooth mouse, Bluetooth speaker, mouse, gamepad)

WiFi

2.4G + 5G dual-band

Remote control

Standard infrared remote control, support external USB2.4G wireless remote control, Bluetooth remote control mouse

Interface input support

U disk, mobile hard disk, mouse, keyboard access, computer, set-top box

Wireless co-screen

Support WiFi LAN with the same screen + outdoor no-network hotspot with the same screen

Extended storage

Support U disk and SSD SSD

USB input

USB HOST 2.0 x 2

HDMI input

Supports HDMI 2.0 input

T-flash card

Supports a maximum of 32 GB

AV input

support

Ethernet input

support

Headphone output

Audio output, 3.5mm connector (for headphones or speakers)

Overall power consumption

45W

Power input

Power adapter 19V/3.42A D C IN

Power supply performance

AC100-240V,50/60Hz No built-in battery

V7, remote control, power adapter, power cord, HDMI cable, product instruction card

Product size of complete machine

193*123*100mm

Overall package size

228.1*228.1*124mm

Net weight of bare metal

1.11Kg

The whole machine with packing weight/set

2.32kg

Net weight of whole container (8 sets/box)

19.7kg

Outer box size (8 sets/box)

550*380*350mm

Other functions

Support wireless projection screen, support 3D function, 2.4/5G dual-band WIFI, farewell to the view

Frequency cache, symmetrical high power dual stereo, HDR+ dynamic decoding
